400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

Brand Name : Hilink

Model Number : OSFP-400G-DR4

Certification : CE Rohs

Place of Origin : Guangdong, China

MOQ : 1 pieces

Price : Send Inquiry know latest price

Payment Terms : T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

Supply Ability : 10 Pieces/Week

Delivery Time : 6-12 working day

Packaging Details : Plastic box+Carton

Product Name : 400G OSFP 1310nm 500m DR4

Data Rate : 400GBASE OSFP

Reach : 500m

Transmitter : EML

Fiber Connector : MPO-12

Operating Temperature : 0 to 70℃

Contact Now

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission
Product Overview

OSFP-400G-DR4 transceiver is designed for use in 400Gb/s network applications, the maximum transmission distance is 500m. OSFP-400G-DR4 is a fully integrated optical transceiver modulated using 4-level pulse amplitude modulation (PAM4) format that transmits and receives optical signals with aggregated data rate of 425Gbps over 4 lanes 1310nm each running at 106.25Gbps. They are compliant with the OSFP Module Specification and only use four electrical channels. OSFP-400G-DR4 are compliant with RoHS.

Key Features

l Compliant with IEEE Std 802.3bs on 400Gb/s Optical interfaces

l Compliant with IEEE Std 802.3ck on 400Gb/s Electrical interfaces

l Compliant with OSFP Module Specification

l Compliant with CMIS5.0 Management interface specifications

l MPO-12 receptacle

l 1310nm EML laser

l 4*53.125GBd PAM4 electrical interface

l Transmission distance up to 500m SMF

l Single +3.3V power supply

l Commercial operating temperature:0oC to +70oC

l RoHS Compliant

Applications

l 400G BASE-DR4 Ethernet

l Data Center

Product Images

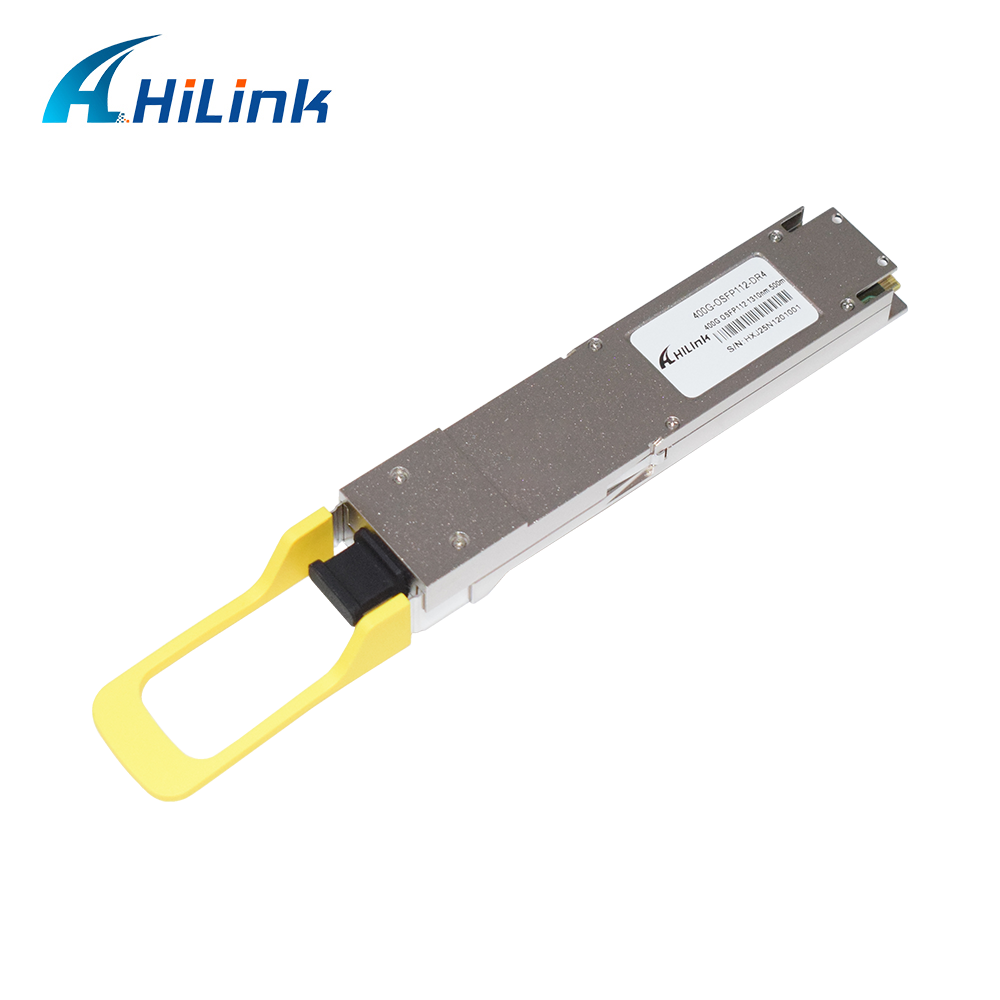

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

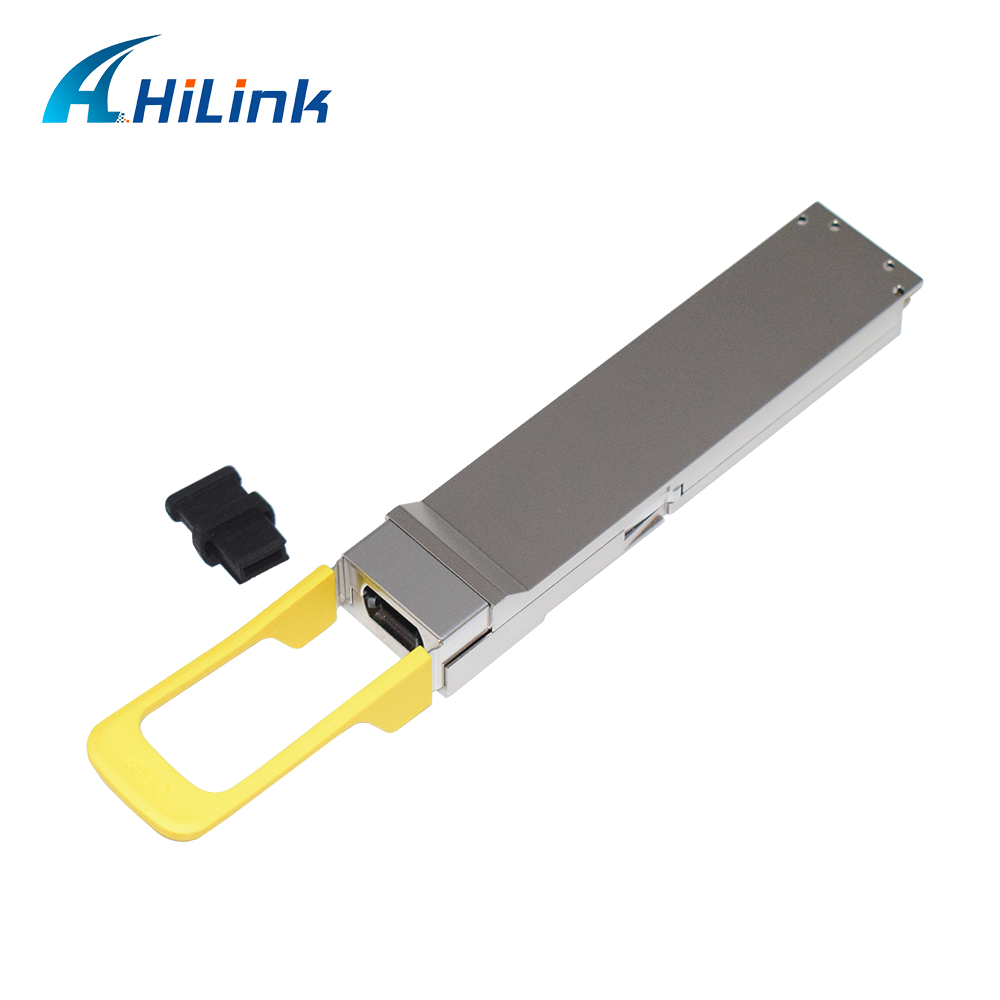

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

400G BASE-DR4 OSFP Module 1310nm EML Laser 500m Transmission

Quality & Service

OEM/ODM orders available. All optical modules are brand new, manufactured with premium materials, and undergo rigorous functional and aging tests. We provide a comprehensive 3-year warranty from the date of shipment for all optical transceivers.
