Customizable 8 Channel Mini Small CWDM Mux Demux Module CCWDM Multiplexer with Ultra-Low Loss

Brand Name : HILINK

Model Number : CCWDM-XX

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 100pcs/week

Wavelength : 1260nm-1610nm

Product name : CCWDM Module

Channel Spacing : 20nm

Return Loss : > 45 dB

Operating Temperature : -5°C~ +75°C

Insertion Loss : < 1.8 dB

Channel number : 8 channel

Customerized : Yes

Contact Now

Customizable 8 Channel Mini Small CWDM Mux Demux Module
Hilink Low Loss Compact Coarse Wavelength Division Multiplexer (CCWDM) is based on Thin-Film-Filter and Micro-Optics technology. This product features a small form factor, ultra low loss, and high channel isolation. The lead-free packaging platform ensures high reliability and performance.
Key Features
  • Ultra-Low Insertion Loss
  • High Isolation
  • Low Polarization Dependent Loss (PDL)
  • Compact Design
  • Excellent Channel-to-Channel Uniformity
  • Mounting Options: 19" 1U Racks or ABS Box
  • Wide Operating Wavelength: 1260nm to 1620nm
  • Wide Operating Temperature: -40℃ to 85℃
  • High Reliability and Stability
Applications
  • CWDM Systems
  • PON Networks
  • CATV Links
  • WDM Networks
Compliance Standards
  • Telcordia GR-1209-CORE-2001
  • Telcordia GR-1221-CORE-1999
  • RoHS Compliant
Technical Specifications
Description Unit Min Typical Max
Optional Channel LossdB1.01.5
Pass Band Widthnm1315
FlatnessdB0.30.5
Adjacent Channel IsolationdB3035
Non-Adjacent Channel IsolationdB3540
DirectivitydB50
PDLdB0.2
PMDps0.2
Maximum PowermW300
Pass Channel Insertion LossdB1.01.5
Operating Temperature°C-10 to +70
Storage Temperature°C-40 to +85
Package Dimensionsmm44(L) × 28(W) × 6(H)
Channel Wavelengthnm1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 (Custom selection available: any 4 channels between 1260-1625nm)
Note: Specifications are provided without connectors. Add 0.2dB loss per connector.
Customizable 8 Channel Mini Small CWDM Mux Demux Module CCWDM Multiplexer with Ultra-Low Loss
Ordering Information

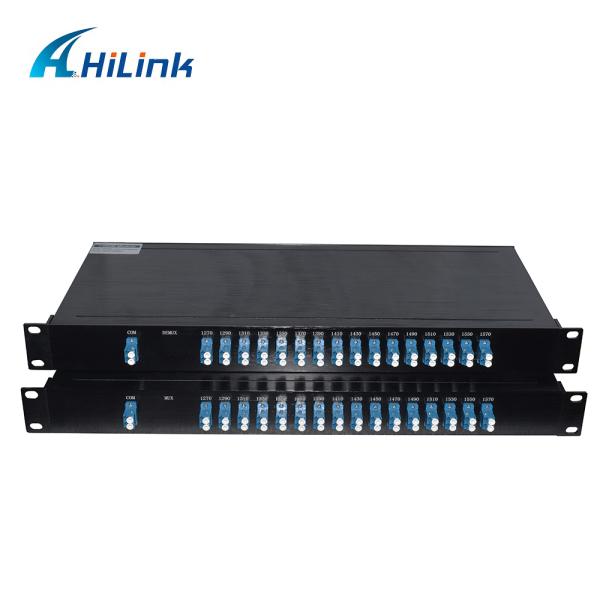

Available in compact packaging or 19" 1U rack mounting options.
Configuration Channels 1st Channel Fiber Type Fiber Length Connector Type
M=Mux D=Demux O=OADM02=2ch 08=8ch 16=16ch 18=18ch N=Nch27=1270nm 47=1470nm 49=1490nm 61=1610nm SS=Special1=Bare Fiber 2=900μm 3=2mm Cable 4=3mm Cable1=1m 2=2m S=Specify0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/UPC
Customizable 8 Channel Mini Small CWDM Mux Demux Module CCWDM Multiplexer with Ultra-Low Loss Customizable 8 Channel Mini Small CWDM Mux Demux Module CCWDM Multiplexer with Ultra-Low Loss Customizable 8 Channel Mini Small CWDM Mux Demux Module CCWDM Multiplexer with Ultra-Low Loss Customizable 8 Channel Mini Small CWDM Mux Demux Module CCWDM Multiplexer with Ultra-Low Loss Customizable 8 Channel Mini Small CWDM Mux Demux Module CCWDM Multiplexer with Ultra-Low Loss
