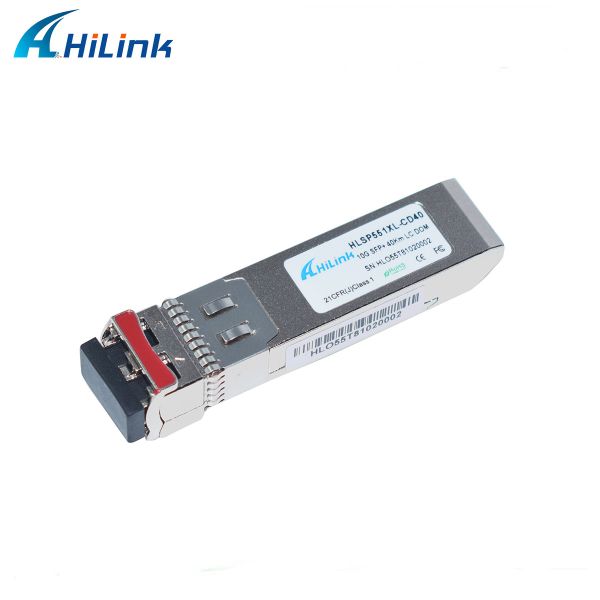

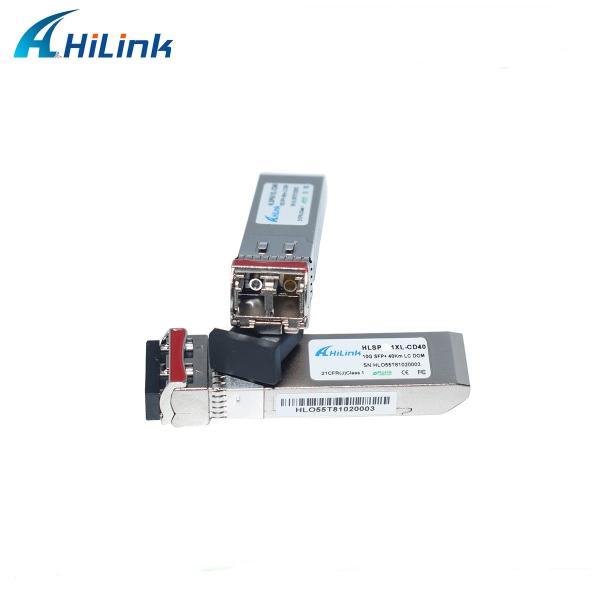

10GBase ER SFP+ SMF 1550nm 40KM LC Duplex DDM SFP+ Fiber Transceiver
Hilink's HLSP551XL-C(I)D40 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single-Mode fiber, and it can support data rate from 9.95Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the SFP+ MSA.
They are compliant with SFF-8431 ,SFF-8432 and IEEE 802.3ae 10GBASE-ER/EW. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication.
| Item No. | SFP-10G-ER | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | 1550nm | Max Cable Distance | 40KM |
| Interface | LC duplex | Optical Components | EML |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -1~+2dBm | Receiver Sensitivity | <-16dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Features
-
Supports 9.95 to 11.3Gb/s bit rates
-
Duplex LC connector
-
Hot pluggable SFP+ footprint
-
Cooled 1550nm EML transmitter, PIN photo-detector
-
Applicable for 40km SMF connection
-
Low power consumption, < 1.2W
-
Digital Diagnostic Monitor Interface
-
Optical interface compliant to IEEE 802.3ae 10GBASE-ER
-
Electrical interface compliant to SFF-8431, SFF-8432
-
Operating case temperature: Commerical: 0 to 70 °C
Industrial: -5 to 80 °C
Applications
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
Product Tags:
|
|
10G Base ER SFP+ Fiber Transceiver SMF 1550nm 40KM LC Duplex DDM Images
|
