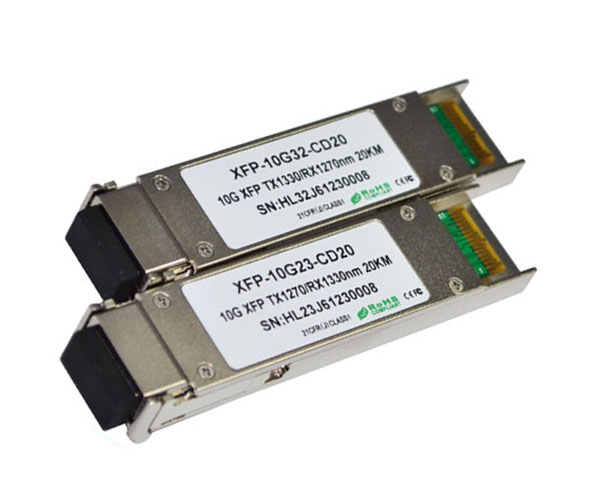

MikroTik Compatible 10gbase LR XFP Transceiver Optical Fiber Module 3 Years Warranty
Specification
| Datarate | 10G | Fiber Type | SMF |
| Transmitter | DFB | Receiver | PIN |
| Distance | 20KM | Wavelenth | TX1270nm/RX1330nm |
| DDM/DOM | Digital (optional) | Connector | LC |
| Voltage Supply | 3.3V | Compatibility | Cisco/Huawei/Mikrotik etc |
| Operating Temperature | 0℃~ +70℃ | Certification | CE/FCC/RoHS |
Features
Operating data rate up to10.3Gbps
Type: 1270nmDFB Tx/1330nmRx 1330nmDFB Tx/1270nmRx
Distance up to 60km
Single 3. 3V Power supply and TTL Logic Interface
Simplex LC Connector Interface
Hot Pluggable
Average Output Power:-2~3dBm
Receiver Sensitivity:-14dBm
Operating Case Temperature
Standard: 0°C~+70°C
Industrial:-40°C~+85°C
Compliant with MSA SFP Specification
DDM function
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
BiDi(WDM) Transceivers
| 155M/622M BiDi SFP LC/SC | 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional |
| 4/2/1G BIDI SFP LC/SC | 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional |
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| 10G XFP BiDi | XFP BiDi 1270 20km | XFP BiDi 20km Tx1270nm/Rx1330nm LC |
| XFP BiDi 1330 20km | XFP BiDi 20km Tx1330nm/Rx1270nm LC |
| XFP BiDi 1270 40km | XFP BiDi 40km Tx1270nm/Rx1330nm LC |
| XFP BiDi 1330 40km | XFP BiDi 40km Tx1330nm/Rx1270nm LC |
XFP Transceivers
| HaiLi Part Number | Cisco Part Number | Application | Data Rate | Wavelength | Distance | Connector Type |
| HL-XFP-SR | XFP-10G-MM-SR= | XFP 10GB-SR | 10G | 850nm | 300m | LC |
| HL-XFP-LR | XFP-10GLR-OC192SR= | XFP 10GB-LR | 10G | 1310nm | 10km | LC |
| HL-XFP-ER | XFP-10GER-192IR+= | XFP 10GB-ER | 10G | 1550nm | 40km | LC |
| HL-XFP-ZR | XFP-10GZR-OC192LR= | XFP 10GB-ZR | 10G | 1550nm | 80km | LC |
FAQ
Q: Do you sell second-hand products?
A: No.All our products are brand new,we never use second-hand components.
Q: Could you provide OEM service?
A: OEM/ODM is available.We can design label for you.
Q: What payment terms do you accept?
A: T/T,Paypal,Western Union are acceptable.
Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
Q: What devices can your products compatible with?
A: Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Q :How to place an order?
A: 1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
